TC2205-0G1250SS-E8

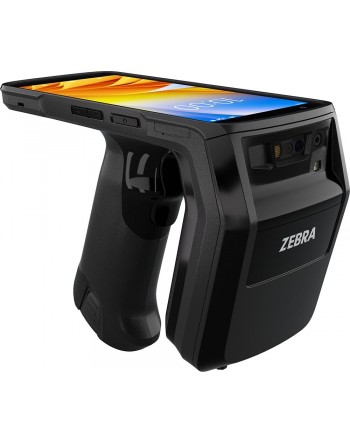

TC22R Integrated Handheld RFID Reader, Gun, Wi-Fi 6, Android GMS, SE4710 + FF/FF Cameras + Standard Range RFID, 6GB | 64GB, Standard 7,000mAh Battery, EMEA 800MHz
Track assets easily with a lightweight, all-touch design In an increasingly competitive marketplace, you need to stay a step ahead with asset tracking that’s easy, intuitive and efficient. The Zebra TC22R Integrated Handheld RFID Reader provides an integrated, lightweight, all-touch design that helps your associates keep track of assets and inventory for extended periods with less fatigue. Capture data in less time and with less effort using a TC22R handheld reader that delivers industry-leading performance, such as read rates up to 1,300 tags per second, in an all-in-one form factor.
Ergonomic Design for All-Day Comfort The TC22R handheld reader combines real-time visibility with simplicity and ease of use. This lightweight reader enables workers to continue cycle counts with less fatigue than heavier devices. That means you get the high performance that comes with fieldproven Zebra software in a compact, all-in-one device. Simplified Deployment The TC22R handheld reader offers a fully integrated Android-based solution that can be supported by mainstream MDMs, reducing deployment headaches and management overhead. And with the latest Bluetooth® and Wi-Fi capabilities, the TC22R handheld reader offers easy deployment that gives your business a competitive edge. Industry-Leading Performance With a robust read rate of up to 1,300 tags per second, the TC22R handheld reader enables greater insights into asset movement and real-time data from the first mile to the last or from the front of the store to the back. In addition, because the TC22R handheld reader has an integrated NFC reader built-in that assists with mobile POS applications, you can capture data in less time and with less effort. Easy Connectivity With Wi-Fi 6 and Bluetooth, the TC22R handheld reader is easy to use and manage across your network. That means implementation takes less training time, allowing you to reduce deployment timelines and streamline configuration. Get the Most Out of Your RFID Investment—From the Leader in RFID Zebra has more fixed, handheld and portal RFID systems installed than any other RFID provider, giving you the peace of mind that comes from choosing RFID products that are well-tested in practically every industry—and in some of the world’s largest companies. And with over 300 RFID technology patents that have allowed us to deliver many industry firsts, you can count on our bestin-class advanced technologies to maximize the performance of your RFID solution.
Specifications Physical Characteristics Dimensions 5.7 in. H x 3.3 in. W x 6.96 in. L 14.5 cm H x 8.4 cm W x 17.7 cm L Weight Display Touch Panel Power Network Connections Notifications Indicators Keypad Buttons User Input Interface Ports 20.07 oz. / 569 g 6.0 in. color Full High Definition+ (1080 x 2160), LED backlight, 450 nits Multi-mode capacitive touch with bare or light gloved fingertip input User-removable, quick-release, rechargeable 7,000 mAh Li-Ion battery with PowerPrecision+ for real-time battery metrics WLAN, WPAN Audible tone, vibration Decode LEDs, battery status LED, beeper On-screen keypad User-programmable button for barcode scanning (default), PTT or other use, volume up/down, power Tri-function user-programmable trigger USB 3.1 (Bottom Type C), Super Speed (host and client) User Environment Operating Temperature Storage Temperature IP Sealing Humidity Electrostatic Discharge Tumble Specification Drop Specification 14° F to 122° F / -10° C to +50° C-40° F to 158° F / -40° C to +70° C IP65 5–95% non-condensing ±15 kV air discharge ±8 kV direct discharge 500 cycles (1,000 drops, 1.6 ft./0.5 m) at room temperature Multiple 5 ft./1.5 m drops to concrete Performance Characteristics CPU Operating System Memory RFID Characteristics Standards Supported RFID Engine Maximum RFID Read Rate Nominal RFID Read Range - Integrated Antenna Frequency Range and RF System Output 5430 hexa-core 2.1 GHz Android: for supported versions, visit www.zebra.com/android-versions 6 GB RAM / 64 GB Flash EPC Class 1 Gen 2; EPC Gen 2 V2 Zebra Proprietary Radio Technology Up to 1,300 tags/sec 40 ft. / 12.2 m US: 902–928 MHz; 0–36 dBm (EIRP) EU: 865–868 MHz; 0–33 dBm (ERP) 916.3, 917.5, and 918.7 MHz; 0–36 dBm (ERP) Japan: 916–921 MHz (w LBT), 0–36 dBm (EIRP) Markets and Applications Integrated RFID Antenna Gain 4 dBi Data Capture Scanning SE4710 1D/2D scan engine Camera Forward-facing 16 MP camera, front-facing 5 MP camera NFC NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support UHF RFID Refer to RFID Characteristics section Wireless LAN WLAN Radio IEEE 802.11a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO, Wi-Fi 6E (802.11ax), Wi-Fi certified; Wi-Fi 6 Certified, Dual Band Simultaneous; IPv4, IPv6 Data Rates 6 GHz: 802.11ax—20 MHz, 40 MHz, 80 MHz, 160 MHz—up to 2,402 Mbps; 5 GHz: 802.11a/n/ ac/ax—20 MHz, 40 MHz, 80 MHz, 160 MHz— up to 2,402 Mbps; 2.4 GHz: 802.11b/g/n/ ax—20 MHz up to 286.8 Mbps Operating Channels Channel 1–13 (2,401–2,483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36–165 (5,150–5,850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1–233 (5,925–7,125 MHz); Channel Bandwidth: 20/40/80/160 MHz; actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency Fast Roam PMKID caching; Cisco CCKM; 802.11r; OKC Security and Encryption WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) - EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS Certifications Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n, Wi-Fi CERTIFIED ac, Wi-Fi CERTIFIED 6 (Wi-Fi 6E), WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise (includes 192-bit mode), Protected Management Frames, Wi-Fi Enhanced Open, WMM (Wi-Fi Multimedia), WMM-Power Save, WMM-Admission Control, Voice-Enterprise, Wi-Fi Direct, Wi-Fi Agile Multiband, Wi-Fi QoS Management, Wi-Fi Optimized Connectivity, Passpoint Retail and Hospitality • Inventory cycle counting • Mobile POS/ line-busting • Item finding Light Manufacturing • Product and component tracking • Work-in-progress Government • Asset tracking • Document management Transportation and Logistics • Inventory cycle counting • Loading verification • Inbound/outbound verification ZEBRA TECHNOLOGIES 2PRODUCT SPEC SHEET TC22R INTEGRATED HANDHELD RFID READER Wireless PAN Bluetooth Class 2, Bluetooth v5.2 Regulatory Compliance Electrical Safety IEC 62368-1 (ed.2) IUL 62368-1, second edition, CAN/CSA-C22.2 No. 62368-1-14 RFI/EMI/EMC RF Exposure FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55035; EN 55032 Class B; EN 60601-1-2 EU: EN 50364, EN 62369-1, EN 50566, EN 62311; USA: FCC Part 2. 1093 OET Bulletin 65 Supplement ‘C’; Canada: RSS-102 RFID EU EN 302 208, FCC Part 15 Subpart C; Canada: RSS-247
