Increase efficiency in the retail, hospitality, and healthcare industries. Optimize cycle-counting with industry-best read rates and read range. Connect directly through eConnex™ adaptors, or wirelessly with Bluetooth® 5.3 capability. Wi-Fi 6 enables easy OTA device management.
Next generation connectivity future-proofs your workplace using eConnex technology that allows for snap-and-go pairing on current and future mobile computing devices
Unparalleled efficiency outperforms the competition with 1,300+ tag reads per second, a 20+ foot read range, and impressive battery capacity. Bluetooth 5.3 and NFC tap-to-pair make it easy to connect to current and future Zebra mobile computers
Easy-to-change, tool-free sled adaptors allow associates to swap out the adaptor quickly while maintaining compatibility – no need to send devices to IT for retrofitting
Flexible and future-proof charging allows you to charge the RFD40 Sled by itself, the mobile computer by itself, or the combination when attached together. A USB-C cable or cable cup enables connection to a host or use as a tethered RFID reader
A variety of adaptors compatible with the OtterBox uniVERSEecosystem allow customers to mount and connect their choice ofdevices, including popular smartphones running Android™, iOS andWindows operating systems.
Your business is being challenged to work faster and more efficiently than ever before. Gain the edge and efficiency you need with the RFD40 UHF RFID Premium and Premium Plus Sled. Connect to current and future Zebra mobile computers directly through eConnex™ adaptors, or wirelessly with Bluetooth™ 5.3 capability. Industry-first Wi-Fi™ 6 enables easy over-the-air (OTA) device management.* Decrease cycle-counting time with an industry-best 1,300+ tag reads per second, optimized read range, tri-function programmable trigger and increased battery capacity, along with the durable drop specs, optimal battery performance and superior ergonomic design you expect from Zebra.

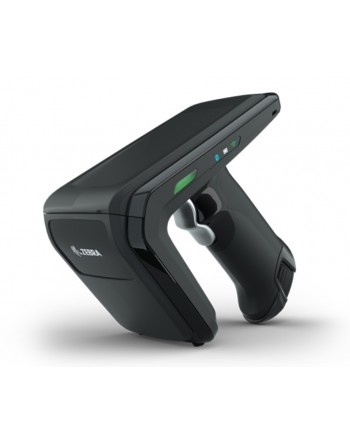

RFD40 UHF RFID Premium/Premium Plus Sleds Spec Sheet Product Photo
Empower Your Workers
Next Generation Connectivity
With the new eConnex™ technology that allows for snap-and-go pairing, you can future-proof your workplace with a sled that supports the latest Zebra mobile computers including WWAN-enabled variants. What’s more, the sleds can connect instantly to supported Zebra eConnex™-enabled devices including the TC21/26, EC50/55 and future models.
Wireless Functionality
Integrated Wi-Fi 6 capability in the RFD40 Premium and Premium Plus Sleds allows for easy over-the-air (OTA) device management, while Bluetooth 5.3 and NFC tap-to-pair make it easier than ever to connect to current and future Zebra mobile computers and third-party smartphones.
Integrated Barcode Scanner
Available only in the RFD40 Premium Plus Sled, an integrated SE4100 imager provides 1D and 2D scanning functionality for the most challenging barcodes—including poorly printed, damaged, dirty, crinkled, low-contrast, glossy and electronic barcodes on dimly lit mobile phone displays.
Unparalleled Efficiency
The RFD40 UHF RFID Premium and Premium Plus Sleds outperform the competition with 1,300+ tag reads per second (up to 30% faster than the next leading competitor), a 20+ foot read range, and ultra-accurate item-finder mode. With a 7,000 mAh battery and a quick-release function that’s accessible without removing the mobile computer, it keeps going hour after hour. The tri-function trigger lets associates quickly access RFID reading, barcode scanning and a programmable third function of your choice, such as the enter key or push-to-talk.
Remarkable Versatility
An adaptor compatible with the OtterBox uniVERSE ecosystem allows customers to easily slide on and slide off a wide variety of smartphones running Android™ and iOS operating systems.
RFD40 UHF RFID Premium/Premium Plus Sleds Compatible Icons: Rain Alliance, Network Connect
Find out more about how the RFD40 UHF RFID Premium and Premium Plus Sleds can optimize performance and boost your ROI.
Please visit www.zebra.com/rfd40
Adaptive Solutions
RFD40 Premium and Premium Plus Sleds are fully enabled to support Zebra’s current mobile computers and smartphones, as well as new mobile computers and third-party smartphones as they come out. Easy-to-change, tool-free sled adaptors allow associates to swap out an adaptor quickly while maintaining compatibility without needing to send devices to IT for retrofitting.
Durability You Can Depend On
Zebra devices have the ability to withstand everyday environments. RFD40 Sleds have a five-foot drop-to-concrete specification and a 500 cycle 0.5 meter/1.6 foot tumble specification to replicate real-world knocks and bumps. They have IP54 sealing for dust and water protection, and an extended operating temperature range of -10°C to 50°C/14°F to 122°F. With these durable specifications, you can feel confident that RFD40 Sleds will meet the demanding needs of your workplace.
Flexible and Future-Proof Charging
Charging solutions for RFD40 Sleds provide users a flexible way to power up the sled and mobile computer in a variety of ways. Featuring two sets of charging pins, each cradle cup can charge an RFD40 Sled by itself, the mobile computer by itself, or a combination of RFD40 Sled and mobile computer when attached together. Cradle cups are available for each combination of RFD40 Sled and mobile computer, including TC21/26 and EC50/55.
A USB-C port on the bottom of the RFD40 Sled, as well as a pinned connector, allows for connecting an RFD40 Sled to a Windows-based PC or other host via a USB-C cable or cable cup, which enables an RFD40 Sled to be used as a tethered RFID reader.
World-Class Development and Enablement Tools
Quickly transition to the latest generation of products without the need for a major application rewrite. The Software Development Kits (SDKs) for RFD40 Premium and Premium Plus Sleds are based on current Zebra RFID handheld SDKs. Only a recompile of the current application with the new SDK is required for you to get up and running on the new RFD40 Sleds.
The RFD40 Premium and Premium Plus Sleds can now connect to 123RFID Desktop via USB cable, cable cup or Bluetooth, so you can configure your sleds live and offline. Use 123RFID Desktop for proofs-of-concept, demos and performing firmware upgrades.
No Host? No Problem!
If a real-time connection to back-end systems is not available, batch mode enables the collection of up to 40,000 RFID tags. Just sync to upload data from RFD40 Sleds to the host device at any time.
Innovative New Cradle Solutions
When you’re ready to upgrade, Zebra’s game-changing cradles were developed so mobile computers can be swapped out with ease. Using just a coin screw, you can make changes without tools or the hassle of plugging or unplugging any wire harnesses, simplifying the experience for all users.
Cradles that support RFD40 Premium and Premium Plus Sleds come in both one-slot and multi-slot options, as well as charge-only and communication variants. For communication support, the one-slot communication cradles have a Micro-USB port for connection to a host PC, while the multi-slot cradles possess an Ethernet port for connection to a corporate network. This connectivity allows you to manage your RFD40 Sleds while in the cradle and also provides the ability to set configuration, push out firmware upgrades, and get device health info, so you get more information about your device with less effort.
Secure Battery Locking Foot
RFD40 Sleds have an optional Battery Locking Foot that locks the battery in place, helping to prevent user damage and/or theft.
Why Zebra for RFID?
The time to implement RFID is now. Rely on the industry’s deepest, field-proven portfolio to drive full-scale transformation without the risks. Designed for your environment, application and conditions, Zebra RFID solutions are engineered to make you more effective.
Specifications
Physical Characteristics
Dimensions
5.94 in. H x 3.3 in. W x in. 6.5 in. L
15.1 cm H x 8.4 cm W x 16.65 cm L
Weight
RFD40 Premium: ~19.1 oz./~541 grams (sled with battery)
RFD40 Premium Plus: ~19.6 oz./~556 grams
Power
Quick-Release, PowerPrecision+ Li-Ion 7,000
mAh battery
Notification
Decode LEDs
Battery Status LED
Beeper
User Input Tri-Function User Programmable Trigger
RFID Performance
Standards Supported EPC Class 1 Gen 2; EPC Gen2 V2
RFID Engine Zebra Proprietary Radio Technology
Fastest Read Rate 1,300+ tags/sec
Nominal Read Range ~19.7+ ft./ ~6+ m
Frequency Range and RF System Output
US: 902–928 MHz; 0–30 dBm (EIRP)
EU: 865–868 MHz; 0–30 dBm (EIRP)
916.3, 917.5, and 918.7 MHz; 0–30 dBm (EIRP)
Japan: 916–921 MHz (w LBT), 0–30 dBm (EIRP)
Wireless LAN
Radio IEEE 802.11 ax/ac/a/b/g/n 2X2, MU-MIMO, IPv4
Data Rate
5 GHz PHY data rates up to 1.2 Gbps;
2.4 GHz PHY data rates up to 458 Mbps
Operating Channels
Channel 1–14: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14;
Channel 36–196: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165, 172, 183, 184, 185, 187, 188, 189, 192, 196;
Channel Bandwidth: 20, 40, 80 MHz
SE4100 Imager (Premium Plus Only)
Sensor Resolution 1280 x 960 pixels, rolling shutter
Field of View 44.5° horizontal, 33.5° vertical
Skew, Pitch, Roll ±60° skew tolerance, ±60° pitch tolerance, 360° roll tolerance
Focal Distance 6 in./15.24 cm from front of engine
Aiming LED Green LED
Illumination Warm white LED
User Environment
Drop Specification Multiple 5 ft./1.5 m drops to concrete
Tumble Specification
500 cycles (1,000 drops, 1.6 ft./0.5 m)
at room temperature
Operating Temperature -10°C to 50°C/14°F to 122°F
Storage Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5–85% non-condensing
Electrostatic Discharge
±15 kV air discharge
±8 kV direct discharge
±8 kVdc indirect discharge
Sealing IP54
Accessories
Cradles and Charging
Cable Cup
USB-C Cable
USB Wall Brick for USB-C Cable and Cable Cup
1-Slot Charging Cradle
1-Slot Charging and USB Cradle
Multi-Slot Charging Cradle
Multi-Slot Charging and Ethernet Cradle
4-Slot Battery Toaster
Other Accessories
eConnex™ Adaptors for Supported Zebra Mobile Computers
Battery Locking Foot
Belt Holster
Communication
Host Connection
eConnex™ (Electronic 8-Pin Connection)
Bluetooth 5.3
USB-C Cable
USB Cable Cup
Host Computer
Zebra mobile computers and tablets
3rd-party smartphones and tablets
Windows-Based PCs
Mobile Computer Adaptors
eConnex™, Bluetooth, OtterBox uniVERSE Case System
Bluetooth Profiles Supported
SPP Profile
HID Profile
Apple iAP2/MFi
Remote Management
Wi-Fi 6
Ethernet Cradles
Via Attached Host Device
Regulatory
EMI/EMC
FCC Part 15 Subpart B Class B; ICES 003 Class B;
EN 301 489-1; EN 301 489-3; EN 55035; EN 55032 Class B; EN 60601-1-2
Electrical Safety
IEC 62368-1 (ed.2)
UL 62368-1, second edition, CAN/CSA-C22.2
No. 62368-1-14
RF Exposure
EU: EN 50364, EN 62369-1, EN 50566, EN 62311;
USA: FCC Part 2. 1093 OET Bulletin 65 Supplement ‘C’; Canada: RSS-102
RFID
EU EN 302 208, FCC Part 15 Subpart C;
Canada: RSS-247
LED Classification (RFD40 Premium Plus) Exempt Risk Group LED product per IEC/EN 62471
Footnotes
* Some features available in a future release. Contact your Zebra Partner or sales representative for more information.
Markets and Applications
Retail
Cycle Counting
|tem Finding
Planogram Compliance
Returns
Inventory Management
Warehouse Management
Back-of-Store Management
BOPIS/BOPAC
Direct Store Delivery
Route Accounting
Hospitality
Check-in and Administration
Ticketing: Concerts, Sporting Events and More
Loyalty Cards
Food Safety and Traceability
Inventory Management
Field Service
Healthcare
Specimen Tracking
Patient Tracking
Hospital Asset Management and Tracking
Staff Management and Tracking
Patient Identification and Admission
Medication Administration
Pharmacy Management and Tracking
